| Nazwa | Wartość |
|---|---|
| Napięcie | 24 V |
| Moc | 0.9 kW |

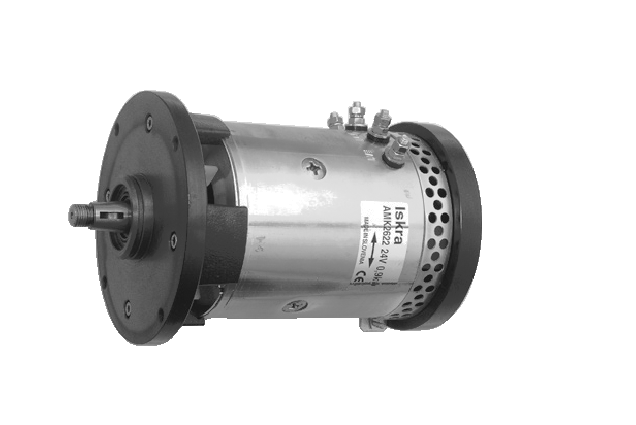

| Opis | AMK2622 |
| Obr. na min | 3,000/min |
| Rotacja | ⇔ |
| S1 | X |
| S2 | - |
| S3 | - |
| Waga | 11.5 kg |
| Flansza | Customer design |
| Ochrona termiczna | No |
| Wentylowanie | Yes |
| Zastosowanie | Traction |
| Uwagi | Insulated ground,Traction,Ventilation |
| Pos. | Spare part P/N |
|---|---|
| 1 | 15.133.848 Drive end bracket
|
| 2 | 16.906.382 Bearing
|
| 3 | 16.915.591 Central cover
|
| 4 | 16.907.146 Armature
|
| 5 | 16.907.147 Bearing
|
| 6 | 16.908.290 Gasket
|
| 7 | 16.907.415 Screw
|
| 8 | 16.282.394 Stator
|
| 11 | 16.908.709 Set of brushes
|
| 13 | 16.907.149 Rear end bracket
|
| 14 | 15.421.544 Fan
|
| 15 | 16.908.945 Protecting cover
|
| Nazwa | Numer oryginalny | |
|---|---|---|
| LETRIKA (ISKRA) | 11.216.449 | |
| LETRIKA (ISKRA) | AMK2622 | |
| TEKNO | 2391 |
| Dostawca | Dostępność |
|---|---|
| JKE |
