| Nazwa | Wartość |
|---|---|
| Napięcie | 12 V |
| Moc | 4.2 kW |
| Liczba zębów | 10 |
| Opis | AZF4831 |
| Uwagi | Mass terminal 31,Noseless version of starter,With reduction gear |
| Moduł | 3.175 mm |
| Odstęp między zębami | 15.42 mm |
| Zewnętrzna średnica koła zębatego | 39.6 mm |

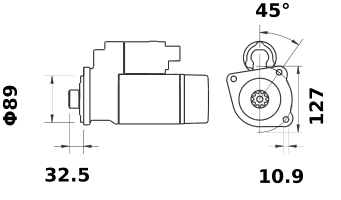

| Średnica zamka | 89 mm |
| Odległość od koła zamachowego | 32.5 mm |
| Mocowanie HxDxd | 3x127x10.9 |
| Kąt mocowania flanszy | R45 ° |
| Pos. | Spare part P/N |
|---|---|
| 1 | 16.285.030 Drive end bracket
|
| 2 | 16.907.383 Bearing
|
| 4 | 16.915.341 Switch
|
| 6 | 16.902.036 Drive assembly
|
| 7 | 16.907.651 Lever
|
| 8 | 16.915.382 Reduction gear
|
| 9 | 16.908.339 Armature
|
| 10 | 16.908.340 Bearing
|
| 11 | 16.907.092 Fixing parts set
|
| 12 | 16.282.438 Stator
|
| 13 | 16.908.336 Brush holder
|
| 14 | 16.908.337 Set of brushes
|
| 15 | 16.285.720 Rear end bracket
|
| 18 | 16.902.035 Gear with clutch
|
| Nazwa | Numer oryginalny | |
|---|---|---|
| AGCO | 4288991M2 | |
| AGCO | 4288991M3 | |
| AGCO | 4288991M4 | |
| AGCO | 4288993M91 | |
| AGCO | 4288993M92 | |
| AGCO | 4288993M93 | |
| LETRIKA (ISKRA) | 11.131.411 | |
| LETRIKA (ISKRA) | 11.132.104 | |
| LETRIKA (ISKRA) | AZF4637 | |
| LETRIKA (ISKRA) | AZF4831 |
